Electric manual stacker

This power unit is designed for stacker machines. It has manual poppet valve that provides maximum energy with smooth working lever.

Electric Motor:	2.2 kW 24 V (Can change according to user need)
Hydraulic Pump:	2.7 cc/rev (Can change according to user need)
Oil Tank:	6- liter, steel (Can change according to user need)
Hydraulic Circuit:	Manual lift circuit

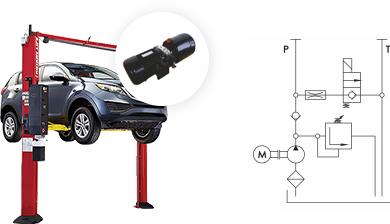

Two post lift

This single acting AC power unit can be designed according to your need. It contains standard aluminum main manifold, relief valve, unloading valve and flow control valve to make the system safe. Manual poppet valve can be mounted if user needs.

Electric Motor:	1.5 kW 380 V AC (Can change according to user need)
Hydraulic Pump:	2.1 cc/rev (Can change according to user need)
Oil Tank:	12- liter, steel (Can change according to user need)
Hydraulic Circuit:	Single acting system with lowering & flow control valve Manual poppet valve can be mounted

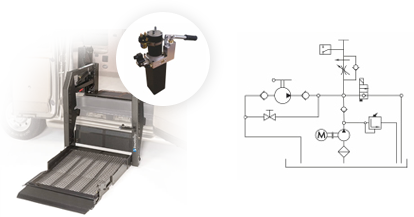

Wheelchair lift

This special power unit is designed for both 12 V & 24 V DC motor applications. Hand pump is mounted for emergency cases.

Electric Motor:	0.8 kW 12V (Can change according to user need)
Hydraulic Pump:	0.5 cc/rev (Can change according to user need)
Oil Tank:	1- liter, steel (Can change according to user need)
Hydraulic Circuit:	Lift circuit with emergency hand pump

Lift gate

This power unit is used for lift gate applications. All in one system includes electric control as well. Power unit can be used for one single – one double acting cylinders or two single acting cylinders with changing special block.

Electric Motor:	2 kW 24 V (Can change according to user need)
Hydraulic Pump:	2.1 cc/rev (Can change according to user need)
Oil Tank:	8- liter, steel (Can change according to user need)
Hydraulic Circuit:	One single – one double acting cylinders Two single acting cylinders

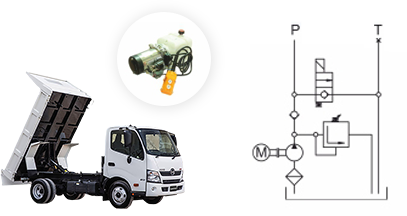

Tripper

This single acting DC power unit is used for damper applications Button control and cable can be mounted. Lowering valve and flow control valve is included.

Electric Motor:	1.6 kW 12 V (Can change according to user need)
Hydraulic Pump:	2.1 cc/rev (Can change according to user need)
Oil Tank:	4- liter, plastic (Can change according to user need)
Hydraulic Circuit:	Single acting system with lowering & flow control valve

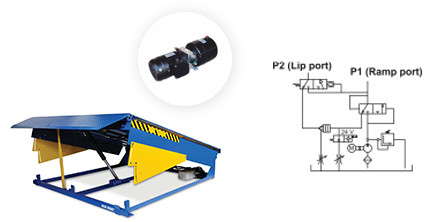

Dock leveler

This power unit is designed for dock leveler. The pump raises the ramp and extends the lip. It is used for systems with 2 single acting cylinders. It also offers an emergency stop function while falling.

Electric Motor:	0.75 kW 380 V AC (Can change according to user need)
Hydraulic Pump:	2.7 cc/rev (Can change according to user need)
Oil Tank:	6- liter, steel (Can change according to user need)
Hydraulic Circuit:	Dock leveler unit, two single acting cylinders.
